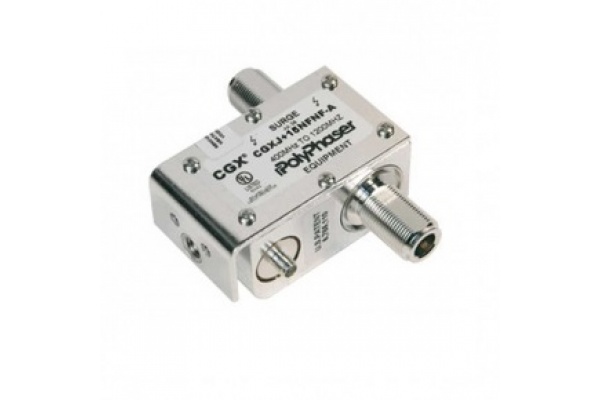

Thiết Bị Chống Sét Lan Truyền Polyphaser CGXJ+15NFNF-A
• Integrated bias-t, hybrid, multistage, multi-strike, fast response, high current capacity, +15 Vdc pass coaxial lightning protector configured with N female connectors for RF operating between 400 MHz and 1.2 GHz
• Specifications for PolyPhaser CGXJ+15NFNF-A
• Type Bias-T
• PIM Rated N
• Connector N
• Surge Side Connector N Female
• Protected Side Connector N Female
• Frequency Range 400 MHz to 1.2 GHz
• Turn On Voltage +20 Vdc
• RF Power 300 W rms average
• VSWR ≤1.1:1
• Insertion Loss ≤0.1 dB
• Protocol/Application Integrated bias-t, RF coaxial protection for 400 MHz to 1.2 GHz
THIẾT BỊ CHỐNG SÉT LAN TRUYỀN POLYPHASER CGXJ+15NFNF-A
Mã sản phẩm : CGXJ+15NFNF-A
Giá bán : Liên hệ
Made in : USA
Producer : Polyphaser
Mô tả : Type Bias-T
PIM Rated N
Connector N
Surge Side Connector N Female
Protected Side Connector N Female
Frequency Range 400 MHz to 1.2 GHz
Turn On Voltage +20 Vdc
RF Power 300 W rms average
VSWR ≤1.1:1
