Chi tiết sản phẩm

THIẾT BỊ CHỐNG SÉT LAN TRUYỀN POLYPHASER BGXZ-60NFNM-ALT

Mã sản phẩm : BGXZ-60NFNM-ALT

Giá bán : Liên hệ

Made in : USA

Producer : Polyphaser

Mô tả : Type DC Pass Mount Type Bulkhead Mount PIM Rated N Standards CE Compliant, RoHS Compliant Connector N Surge Side Connector N Female Protected Side Connector N Male Frequency Range 1.75 MHz to 400 MHz Turn On Voltage ±65 Vdc

Nội dung chi tiết Bình luận

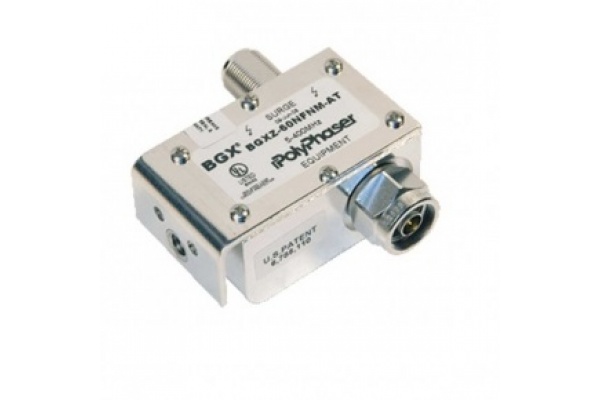

Thiết Bị Chống Sét Lan Truyền Polyphaser BGXZ-60NFNM-ALT
• Hybrid, multistage, multi-strike, fast response, high current capacity, ±60 Vdc pass coaxial lightning protector configured with N male equipment side and N female surge side connectors for RF operating between 40MHz and 400MHz
• Specifications for PolyPhaser BGXZ-60NFNM-ALT
• Type DC Pass
• Mount Type Bulkhead Mount
• PIM Rated N
• Standards CE Compliant, RoHS Compliant
• Connector N
• Surge Side Connector N Female
• Protected Side Connector N Male
• Frequency Range 1.75 MHz to 400 MHz
• Turn On Voltage ±65 Vdc
• RF Power 100 Wrms
• Insertion Loss ≤0.25dB
• Protocol/Application DC pass RF coaxial protection for 1.75 MHz to 400 MHz
