Chi tiết sản phẩm

THIẾT BỊ CHỐNG SÉT LAN TRUYỀN POLYPHASER AL-LSXM-MA

Mã sản phẩm : AL-LSXM-MA

Giá bán : Liên hệ

Made in : USA

Producer : Polyphaser

Mô tả : Type DC Block PIM Rated N Standards IEC 60529 IP65, Bellcore #TA-NWT-00487 Connector N Surge Side Connector N Male Protected Side Connector N Female Frequency Range 2.0 GHz to 6.0GHz

Nội dung chi tiết Bình luận

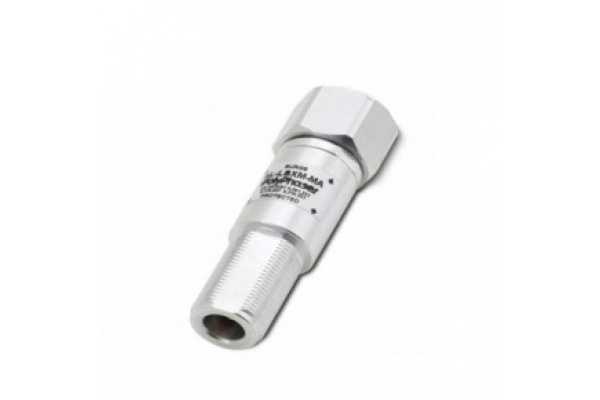

Thiết Bị Chống Sét Lan Truyền Polyphaser AL-LSXM-MA
• Patented SX radio frequency dc blocked filter protectors are ideal for RF coaxial applications where dc is not required.
Features
• UL 497B
• RoHS compliant
• High surge current capability
• Low let-through voltage and throughput energy
• DC shorted filter design, no dc continuity between center pins
• Ideal use for applicaitons where dc is not required on the coaxial cable
• Fully weatherized housing
• Elongated female connector allows for mounting through a 1/4" bulkhead or grounding bar
• Multi-strike capability
• Specifications for PolyPhaser AL-LSXM-MA
• Type DC Block
• PIM Rated N
• Standards IEC 60529 IP65, Bellcore #TA-NWT-00487
• Connector N
• Surge Side Connector N Male
• Protected Side Connector N Female
• Frequency Range 2.0 GHz to 6.0GHz
• RF Power 10 W
• VSWR ≤ 1.2 to 1 over frequency range
• Insertion Loss ≤ 0.1 dB Typical, (≤ 0.2 dB Max)
• Protocol/Application dc block, RF lightning protection
• Dimensions (cm) 7.11 x 2.57 x 2.57
