Chi tiết sản phẩm

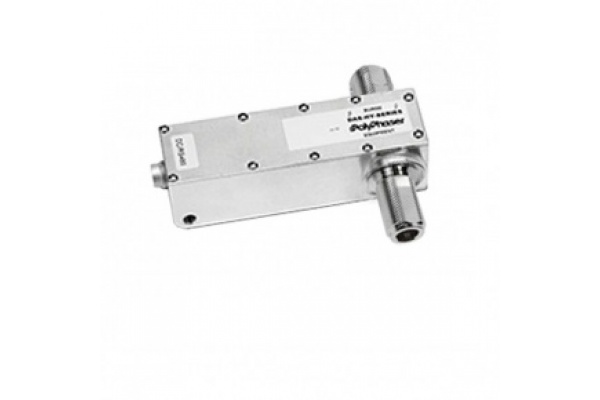

CHỐNG SÉT POLYPHASER DAS-HY-NFNF-02S

Mã sản phẩm : DAS-HY-NFNF-02S

Giá bán : Liên hệ

Made in : USA

Producer : Polyphaser

Mô tả : Type Bias-T PIM Rated N Connector N Surge Side Connector N Female Protected Side Connector N Female Frequency Range 800 MHz to 2.5 GHz RF Power 750 Wrms VSWR ≤1.1:1 Protected Side Connector N Female Frequency Range 800 MHz to 2.5 GHz

Nội dung chi tiết Bình luận

Thiết Bị Chống Sét Lan Truyền Polyphaser DAS-HY-NFNF-02S
• The DAS-HY is a dc pass AISG compliant coaxial protector for sites that use Remote Electrical Tilt Antenna (RETA). The DAS-HY has a circular 8-pin connector for data and two RF connectors.
• Specifications for PolyPhaser DAS-HY-NFNF-02S
• Type Bias-T
• PIM Rated N
• Connector N
• Surge Side Connector N Female
• Protected Side Connector N Female
• Frequency Range 800 MHz to 2.5 GHz
• RF Power 750 Wrms
• VSWR ≤1.1:1
• Protected Side Connector N Female
• Frequency Range 800 MHz to 2.5 GHz
• RF Power 750 Wrms
• VSWR ≤1.1:1
• Insertion Loss ≤0.1 dB
• Protocol/Application DC pass AISG RF coaxial protection for 800 to 2.5 GHz, 50 Ohms
