Chi tiết sản phẩm

THIẾT BỊ CHỐNG SÉT LAN TRUYỀN POLYPHASER DGXJ+24NFNF-A

Mã sản phẩm : DGXJ+24NFNF-A

Giá bán : Liên hệ

Made in : USA

Producer : Polyphaser

Mô tả : Type Bias-T PIM Rated N Connector N Surge Side Connector N Female Protected Side Connector N Female Frequency Range 800 MHz to 2.5 GHz Turn On Voltage +26.5 Vdc RF Power 300 W rms average VSWR ≤1.1:1

Nội dung chi tiết Bình luận

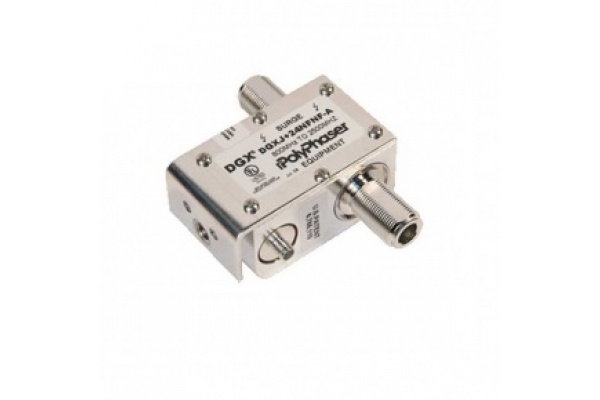

Thiết Bị Chống Sét Lan Truyền Polyphaser DGXJ+24NFNF-A
• Integrated bias-t, hybrid, multistage, multi-strike, fast response, high current capacity, +24 Vdc pass coaxial lightning protector configured with N female connectors for RF operating between 800 MHz and 2.5 GHz (alternate lid configuration)
• Specifications for PolyPhaser DGXJ+24NFNF-A
• Type Bias-T
• PIM Rated N
• Connector N
• Surge Side Connector N Female
• Protected Side Connector N Female
• Frequency Range 800 MHz to 2.5 GHz
• Turn On Voltage +26.5 Vdc
• RF Power 300 W rms average
• VSWR ≤1.1:1
• Insertion Loss ≤0.1 dB
• Protocol/Application Integrated bias-t, RF coaxial protection for 800 MHz to 2.5 GHz
