Chi tiết sản phẩm

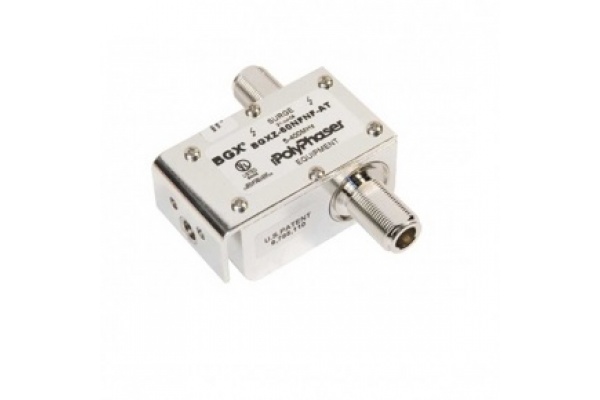

THIẾT BỊ CHỐNG SÉT LAN TRUYỀN POLYPHASER BGXZ-60NFNF-ALT

Mã sản phẩm : BGXZ-60NFNF-ALT
Giá bán : Liên hệ
Made in :
Producer :
Mô tả : Type DC Pass Surge Side Connector N Female Protected Side Connector N Female Frequency Range 1.75 MHz to 400 MHz Turn On Voltage ±66 Vdc RF Power 100 Wrms

Thiết Bị Chống Sét Lan Truyền Polyphaser BGXZ-60NFNF-ALT
• Hybrid, multistage, multi-strike, fast response, high current capacity, ±60 Vdc pass coaxial lightning protector configured with N female connectors for RF operating between 40 MHz and 400 MHz (telemetry 1.75 MHz to 25 MHz
• Specifications for PolyPhaser BGXZ-60NFNF-ALT
• Type DC Pass
• PIM Rated N
• Connector N
• Surge Side Connector N Female
• Protected Side Connector N Female
• Frequency Range 1.75 MHz to 400 MHz
• Turn On Voltage ±66 Vdc
• RF Power 100 Wrms
• Protocol/Application DC pass RF coaxial protection for 40 MHz to 400 MHz
